川字型塑膠棧板分為二叉口及四叉口等二種，分別介紹及說明如下：
川字型塑膠棧板
型號 Model No | 尺寸（長x 寬 x 高） Size(L x W x H ) | 靜荷重（噸） Static(Ton) | 動荷重（噸） Dynamic(Ton) | 架荷重（噸） Racking(Ton) |
|---|---|---|---|---|
| F-110110-150 | 1100X1100X150 | 5.4 | 3.5 | 0.9 |
| F-120120-145 | 1200x1200x145 | 4.5 | 3.3 | 0.9 |
| FC-110110-150-2 | 1100x1100x150 | 5.0 | 2.8 | 0.8 |
| FC-110110-150-3 | 1100x1100x150 | 6.0 | 4.0 | 1.0 |
| FC-100100-160 | 1000x1000x160 | 4.5 | 3.8 | 1.0 |
| FC-115115-150 | 1150x1150x150 | 6.0 | 3.8 | 1.0 |
| FC-120100-150 | 1200x1000x150 | 3.0 | 2.8 | 0.5 |
| FC-120100-155 | 1200x1000x155 | 2.4 | 2.0 | 0.4 |
| FC-120120-145 | 1205x1005x145 | 4.5 | 3.3 | 0.8 |
| FC-127095-160 | 1275x955x161 | 4.2 | 2.8 | 0.5 |
| FC-127109-160 | 1270x1100x161 | 3.0 | 2.8 | 0.5 |
| FC-130130-150 | 1300x1300x150 | 6.0 | 3.5 | 1.0 |
| FC-132110-140 | 1320x1100x138 | 3.6 | 2.6 | 0.6 |
| FCJ-110110-140 | 1100x1100x140 | 3.3 | 2.5 | 0.2 |
| FCJ-110110-160 | 1100x1100x160 | 4.5 | 3.5 | 1.0 |
| FCJ-120100-155 | 1200x1000x155 | 3.6 | 2.6 | 0.35 |
| FCJ-120100-157 | 1200x1000x157 | 4.8 | 4.0 | 0.8 |
| FCJ-120100-160 | 1200x1000x160 | 5.0 | 4.0 | 0.8 |
| FCJ-127095-160 | 1270x950x160 | 4.2 | 2.8 | 0.5 |
| FCJ-127105-160 | 1270x1050x160 | 3.0 | 2.5 | 0.5 |
| FCJ-127110-160 | 1265x1095x160 | 3.0 | 2.0 | 0.4 |
尺寸單位：mm
二叉口川字型塑膠棧板
 |  |
F-110110-150 二叉口川字型塑膠棧板 | F-110110-150 二叉口川字型塑膠棧板 |
四叉口川字型塑膠棧板
|
|

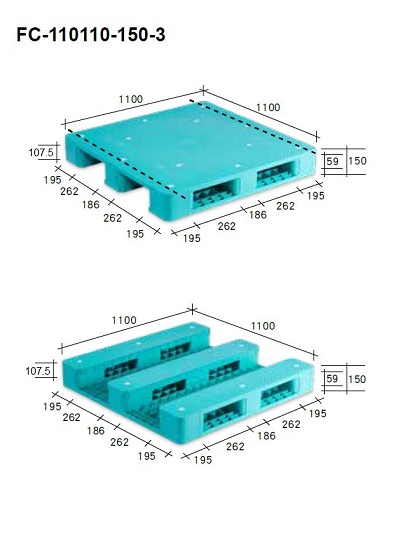

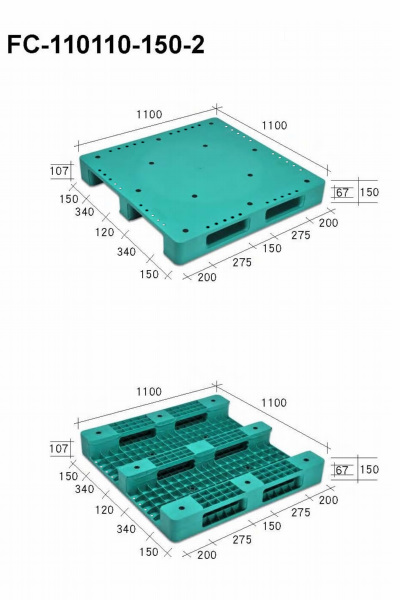

FC-110110-150-2 四叉口川字型塑膠棧板 | FC-110110-150-3 四叉口川字型塑膠棧板 |
 |  |
FC-100100-160 四叉口川字型塑膠棧板 | FC-115115-150 四叉口川字型塑膠棧板 |
 |  |
FC-120100-150 四叉口川字型塑膠棧板 | FC-120100-155 四叉口川字型塑膠棧板 |
 |  |
FC-120120-145 四叉口川字型塑膠棧板 | FC-127095-160 四叉口川字型塑膠棧板 |
 |  |
FC-127109-160 四叉口川字型塑膠棧板 | FC-130130-150 四叉口川字型塑膠棧板 |
 |  |
FC-132110-140 四叉口川字型塑膠棧板 | FCJ-110110-160 四叉口川字型塑膠棧板 |
 |  |
FCJ-120100-155 四叉口川字型塑膠棧板 | FCJ-120100-157 四叉口川字型塑膠棧板 |
 |  |
FCJ-120100-160 四叉口川字型塑膠棧板 | FCJ-127095-160 四叉口川字型塑膠棧板 |
|  |
FCJ-127105-160 四叉口川字型塑膠棧板 | FCJ-127110-160 四叉口川字型塑膠棧板 |
